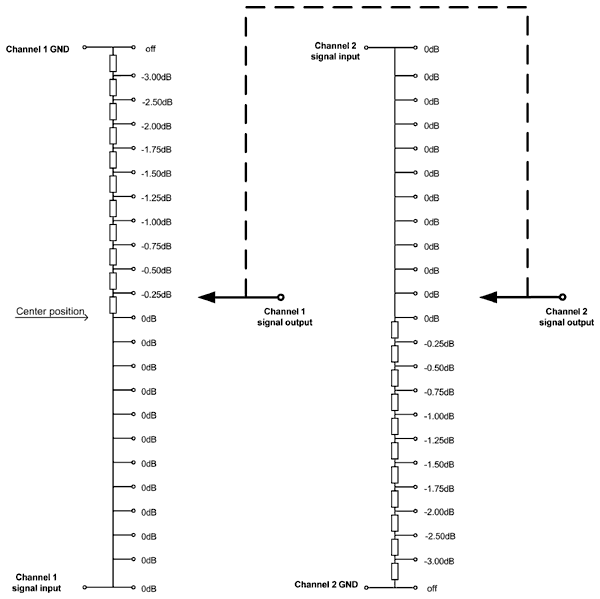

Stepped Balance Controls. Danish Audio ConnecT (DACT) is the manufacturer of the CT4 stepped audio balance control. CT4 uses high-precision, non-inductive SMD resistors and is build on a Swiss-made switch with gold plated contacts. CT4 adjusts the channel balance is steps of 0.25dB. Tracking between the two channels is better than +/- 0.05dB.
SPECIFICATIONS
Number of steps:
23

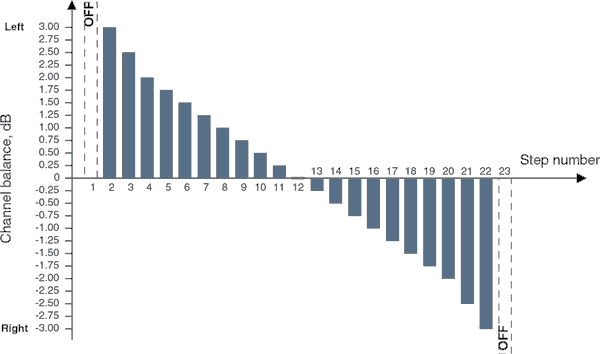

Channel balance adjustment range:
+/-3 dB
Channel balance adjustment resolution:
+/-0.25 dB (+/-0.5dB)
THD:
0.0001 %
Attenuation accuracy:
+/-0.05 dB
Channel matching:
+/-0.05 dB
Mechanical life, min.:
>25,000 cycles
Contacts and wiper:
Hard-gold plated
High-end sound
Precision balance control with 1/4dB balance adjustment
Non-inductive SMD resistor network
All contacts and connectors gold plated
