Danish Audio ConnecT. High quality audio parts - APPLICATION NOTE. Suggestion for how to wire a CT3 selector switch for switching between multiple preamp outputs.

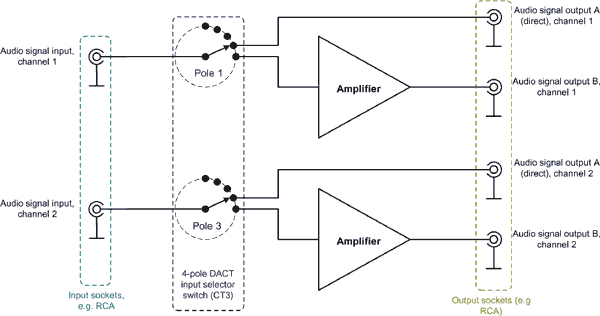

Fig. 1. Preamp with multiple output sockets. Using a CT3 (which has 4 poles) allows switching both signal and ground on a stereo amp (fig.1 shows only switching signal, not ground). Get PDF version of this schematic HERE (33KB).
